I’ve finally gotten a dedicated space to work in, and I’ve been using it. This past week I’ve put in nearly 9-10 hours a day planning and strategizing what I’m going to do for Rune Synergy. I’ve decided to stick with the Go backend (server) and frontend (client).
Audio Synthesizer

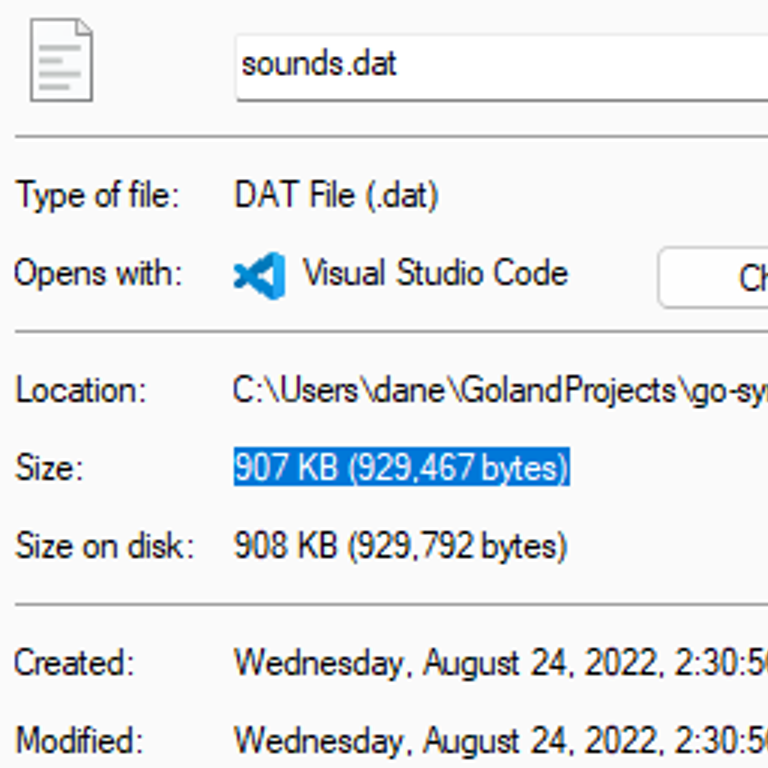

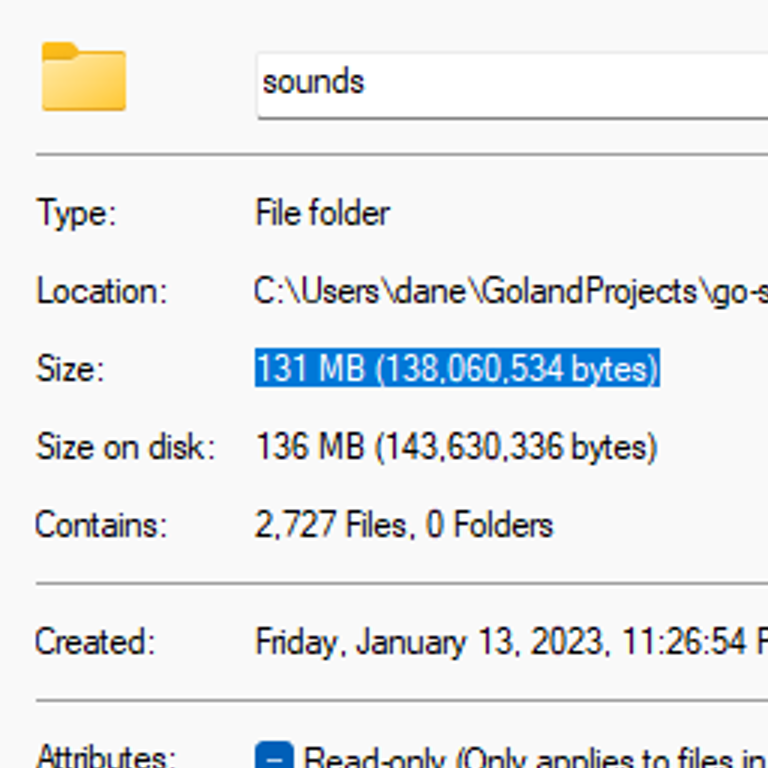

The client I’m rewriting has its own audio synthesizer and format for sound effects. It’s a great idea since raw waveforms can be pretty large in size. The space savings are pretty insane honestly. The sounds.dat file is roughly 929,467 bytes and when all the sounds are rendered out as 16bit mono waveforms that size becomes 131 MB (138,060,534 bytes). That’s like 148x more bytes.
I don’t plan on rendering out the sound effects and shipping them though. Instead I’d like to recreate the tool used to create them. There is an inhouse tool used by Jagex called JagFX.
A screenshot of JagFX as shown by @JagexIanTSome information is not present in any of the sounds, such as the gap on/off curves and loop count.

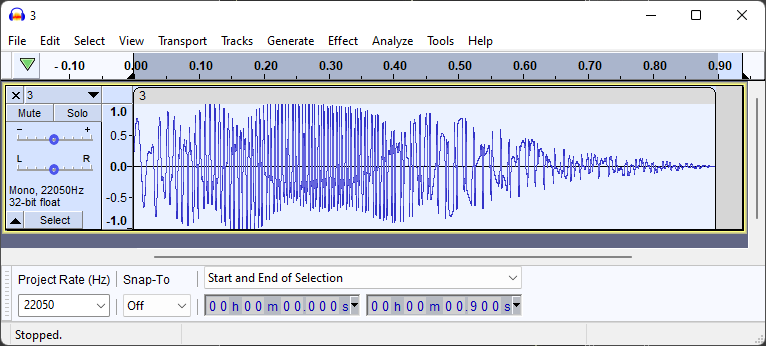

Here’s the data for the screenshot. Oddly enough there is an inconsistency between this data and the screenshot. The data has a length of 900 as opposed to 1200. I’m not sure if this is due to some post-processing or something. I looked at the waveform in Audacity to compare it to their preview and it’s basically identical.
{
"id": 3,
"tones": {
"0": {
"length": 900,
"reverb_volume": 100,
"harmonics": [
{
"volume": 100
},
{
"volume": 60,
"semitone": 133
}
],
"freq_base": {
"form": "sine",
"start": 30,
"end": 300,
"peaks": [
{
"x": 0,
"y": 0
},
{
"x": 5566,
"y": 22283
},
{
"x": 22982,
"y": 46662
},
{
"x": 35012,
"y": 18613
},
{
"x": 65535,
"y": 0
}
]
},
"freq_mod_rate": {
"form": "square",
"end": 150,
"peaks": [
{
"x": 0,
"y": 32244
},
{
"x": 65535,
"y": 31720
}
]
},
"freq_mod_range": {
"form": "default",
"end": 100,
"peaks": [
{
"x": 0,
"y": 1573
},
{
"x": 13286,
"y": 19923
},
{
"x": 65535,
"y": 65535
}
]
},
"amp_base": {
"form": "default",
"end": 100,
"peaks": [
{
"x": 0,
"y": 31720
},
{
"x": 12029,
"y": 46400
},
{
"x": 36089,
"y": 33817
},
{
"x": 49017,
"y": 10224
},
{
"x": 65535,
"y": 0
}
]
}
}
}
}
Another inconsistency is that there are two sounds that use a fifth tone type. In the screenshots of JagFX above you can see there are only four. I googled “basic waveform types” and came to the conclusion that Triangle was the only one missing while looking at this wiki. They’re present in the freq_mod_rate curve for the verac_stab sound, but unfortunately are not utilized. They were probably scrapped because they just sound like crusty sine waves. Here is a 220Hz sine wave and a triangle wave:
Data
For now the datasets I’m compiling are stored in JSON as an intermediary until I find a proper solution for my target capabilities. All of the data is based on what is found in the original game cache, combined with OSRS data to fill in the gaps.
I plan on configurations being a first-class citizen in the development environment for Rune Synergy, which should hopefully supply auto-completion to ensure correctness and provide a root to stem interactions and in-game scripts off of.
Here are some samples of each dataset:
identikits.json
I sourced the names from the OSRS wiki manually.
{
"kind": "male_hair",
"kits": [
{
"id": 0,
"name": "bald",
"model": {
"id": 230
},
"chat_model": {
"id": 63
}
},
{
"id": 1,
"name": "dreadlocks",
"model": {
"id": 210
},
"chat_model": {
"id": 49
}
},
{
"id": 2,
"name": "long",
"model": {
"id": 214
},
"chat_model": {
"id": 52
}
},
{
"id": 3,
"name": "medium",
"model": {
"id": 217
},
"chat_model": {
"id": 55
}
},
{
"id": 4,
"name": "tonsure",
"model": {
"id": 223
},
"chat_model": {
"id": 59
}
},
{
"id": 5,
"name": "short",
"model": {
"id": 215
},
"chat_model": {
"id": 53
}
},
{
"id": 6,
"name": "cropped",
"model": {
"id": 235
},
"chat_model": {
"id": 67
}
},
{
"id": 7,
"name": "wild_spikes",
"model": {
"id": 206
},
"chat_model": {
"id": 46
}
},
{
"id": 8,
"name": "spikes",
"model": {
"id": 203
},
"chat_model": {
"id": 45
}
},
{
"id": 9,
"name": "spikes_unused",
"unselectable": true,
"model": {
"id": 203
},
"chat_model": {
"id": 45
}
}
]
}items.json
{
"id": 4151,
"internal_name": "abyssal_whip",
"name": "Abyssal whip",
"examine": "A weapon from the abyss.",
"linked": 4152,
"members": true,
"tradeable": true,
"noteable": true,
"cost": 100000,
"weight": 0.453,
"inventory_options": {
"1": "Wield"
},
"equipment": {
"slot": "rhand",
"weapon_speed": 4,
"weapon_category": "whip",
"bonuses": {
"attack": {
"slash": 82
},
"melee_strength": 82
},
"requirements": {
"attack": 70
}
},
"model": {
"id": 5412
},
"male_worn_model": {
"id": 5409
},
"female_worn_model": {
"id": 5409,
"translate_y": 6
},
"icon": {
"zoom": 840,
"pitch": 280,
"offset_x": -2,
"offset_y": 56
}
},
{
"id": 4152,
"internal_name": "noted_abyssal_whip",
"linked": 4151,
"certificate": 799
}objects.json
{
"id": 6310,
"internal_name": "black_mushrooms1",
"name": "black mushrooms",
"examine": "not good for eating.",
"options": {
"0": "pick"
},
"size_x": 4,
"size_z": 2,
"model": {
"id": 6160,
"recolors": [
{
"src": 6261,
"dst": 10442
},
{
"src": 5351,
"dst": 10553
}
]
},
"varbit": 346,
"overrides": [
6363,
6363,
6363,
6363,
6363,
6364,
6364,
6364,
6364,
6364
],
"interactable": true
}interfaces.json
{
"id": 668,
"parent_id": 638,
"kind": "text",
"op": "Recruitment Drive",
"op_type": "ok",
"width": 100,
"height": 14,
"shadowed": true,
"font": 1,
"text": "Recruitment Drive",
"color": 16711680,
"hover_color": 16777215
},
{
"id": 669,
"parent_id": 6575,
"kind": "text",
"op": "Toggle option",
"op_type": "ok",
"width": 74,
"height": 14,
"hover_delegate": 8277,
"shadowed": true,
"font": 1,
"text": "Fun Weapons",
"color": 11175970
},
{
"id": 670,
"parent_id": 6575,
"kind": "image",
"op": "Toggle option",
"op_type": "ok",
"width": 14,
"height": 15,
"hover_delegate": 8277,
"image": "miscgraphics,10",
"active_image": "miscgraphics,11",
"scripts": [
{
"comparator": 1,
"operand": 1,
"code": [
13,
286,
12,
0
]
}
]
}npcs.json
{
"id": 50,
"name": "King black dragon",
"internal_name": "king_black_dragon",
"examine": "The biggest, meanest dragon around.",
"options": {
"1": "Attack"
},
"category": [
"black dragons",
"bosses"
],
"attributes": [
"dragon",
"fiery"
],
"size": 5,
"members": true,
"combat": {
"level": 276,
"hitpoints": 240,
"attack_level": 240,
"strength_level": 240,
"defense_level": 240,
"ranged_level": 1,
"magic_level": 240,
"attack_type": [
"stab",
"dragonfire"
],
"attack_rate": 4,
"aggressive": true,
"poisonous": true,
"max_hit": 25,
"defence_stab": 70,
"defence_slash": 90,
"defence_crush": 90,
"defence_magic": 80,
"defence_ranged": 70,
"slayer_monster": true,
"slayer_level": 1,
"slayer_xp": 258,
"slayer_masters": [
"konar",
"nieve",
"duradel"
]
},
"model": {
"join": [
2853,
2855
],
"scale_x": 160,
"scale_y": 160,
"scale_z": 160,
"recolors": [
{
"src": 61,
"dst": 11140
},
{
"src": 41,
"dst": 11138
},
{
"src": 0,
"dst": 937
},
{
"src": 115,
"dst": 7853
},
{
"src": 127,
"dst": 7853
}
]
},
"sequences": {
"idle": 90,
"move": 79
}
}variables.json
{
"name": "barrows",
"vars": [
{
"slot": 452,
"transmit": true,
"bits": [
{
"name": "ladder_a",
"bits": 1,
"offset": 6
},
{
"name": "ladder_c",
"bits": 1,
"offset": 7
},
{
"name": "ladder_g",
"bits": 1,
"offset": 8
},
{
"name": "ladder_i",
"bits": 1,
"offset": 9
},
{
"name": "door_a",
"bits": 1,
"offset": 10
},
{
"name": "door_b",
"bits": 1,
"offset": 11
},
{
"name": "door_c",
"bits": 1,
"offset": 12
},
{
"name": "door_d",
"bits": 1,
"offset": 13
},
{
"name": "door_e",
"bits": 1,
"offset": 14
},
{
"name": "door_f",
"bits": 1,
"offset": 15
},
{
"name": "door_g",
"bits": 1,
"offset": 16
},
{
"name": "door_h",
"bits": 1,
"offset": 17
},
{
"name": "door_i",
"bits": 1,
"offset": 18
},
{
"name": "door_j",
"bits": 1,
"offset": 19
},
{
"name": "door_k",
"bits": 1,
"offset": 20
},
{
"name": "door_l",
"bits": 1,
"offset": 21
},
{
"name": "door_m",
"bits": 1,
"offset": 22
},
{
"name": "door_n",
"bits": 1,
"offset": 23
},
{
"name": "door_o",
"bits": 1,
"offset": 24
},
{
"name": "door_p",
"bits": 1,
"offset": 25
},
{
"name": "",
"bits": 3,
"offset": 29
}
]
}
]
}What’s next?
After I finish breaking all the data down into a human-readable format and further completing the data using external sources, I should have a good idea of how I’ll want to organize said data into the Rune Synergy scripting language. I want data and code to coexist so that it’s easier to relate data later on… More on that later.
I’ve mentioned a scripting language but I haven’t specified which. I considered the following languages:
One of my biggest issues is that I’d like to have the game client also work as an Integrated Development Environment (IDE) and respond in real-time to script and configuration changes. The goal is to make development fun, easy, and fast. Since the backend (server) will be actually running the scripts and the frontend (client) will be reading/writing the scripts, I need to establish some communication between the two that can facilitate that.
It might be easier just to allow the game client to open a desired text editor whether it be VSCode or Vim or whatever else, and then have a Language Server on both the client and game server working together.
I might just have to write my own interpreter and go down the rabbit hole… Luckily I’ve already been experimenting with that idea exactly with something I call Norskript.
To be continued…
